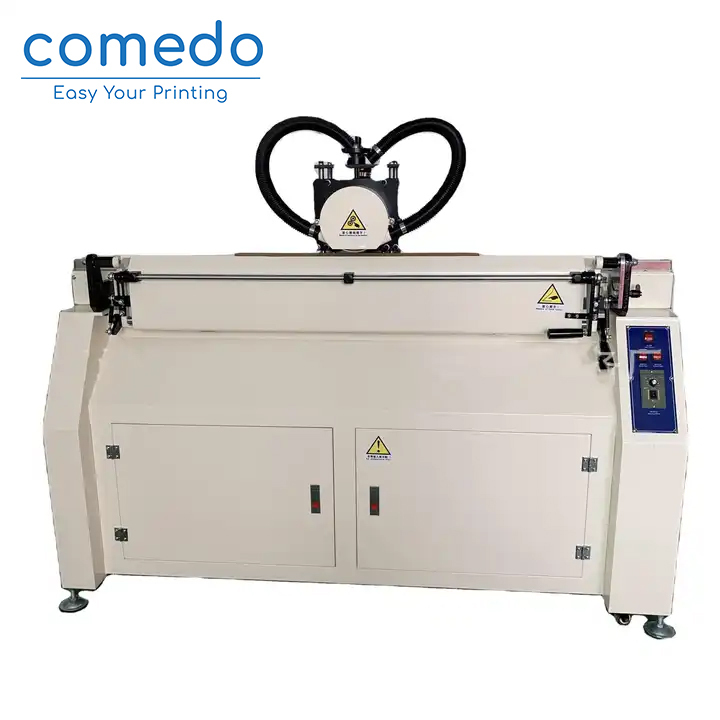

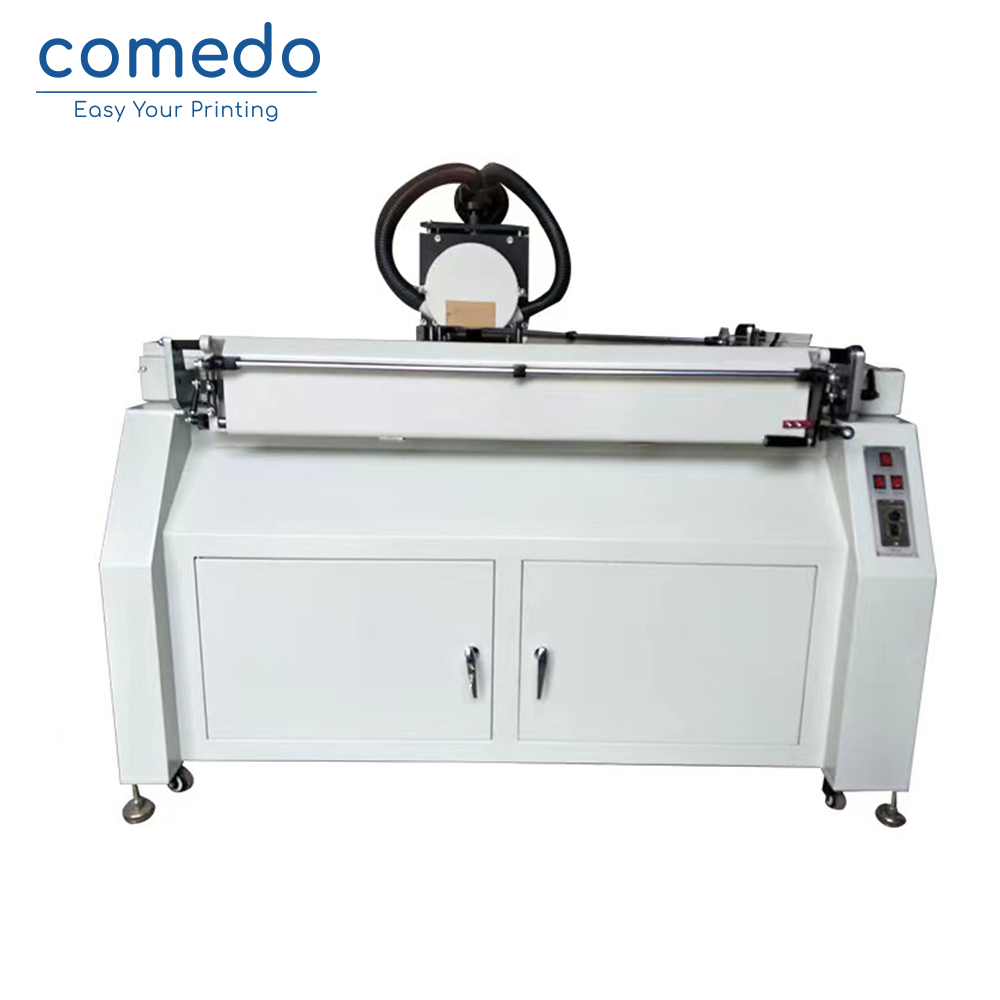

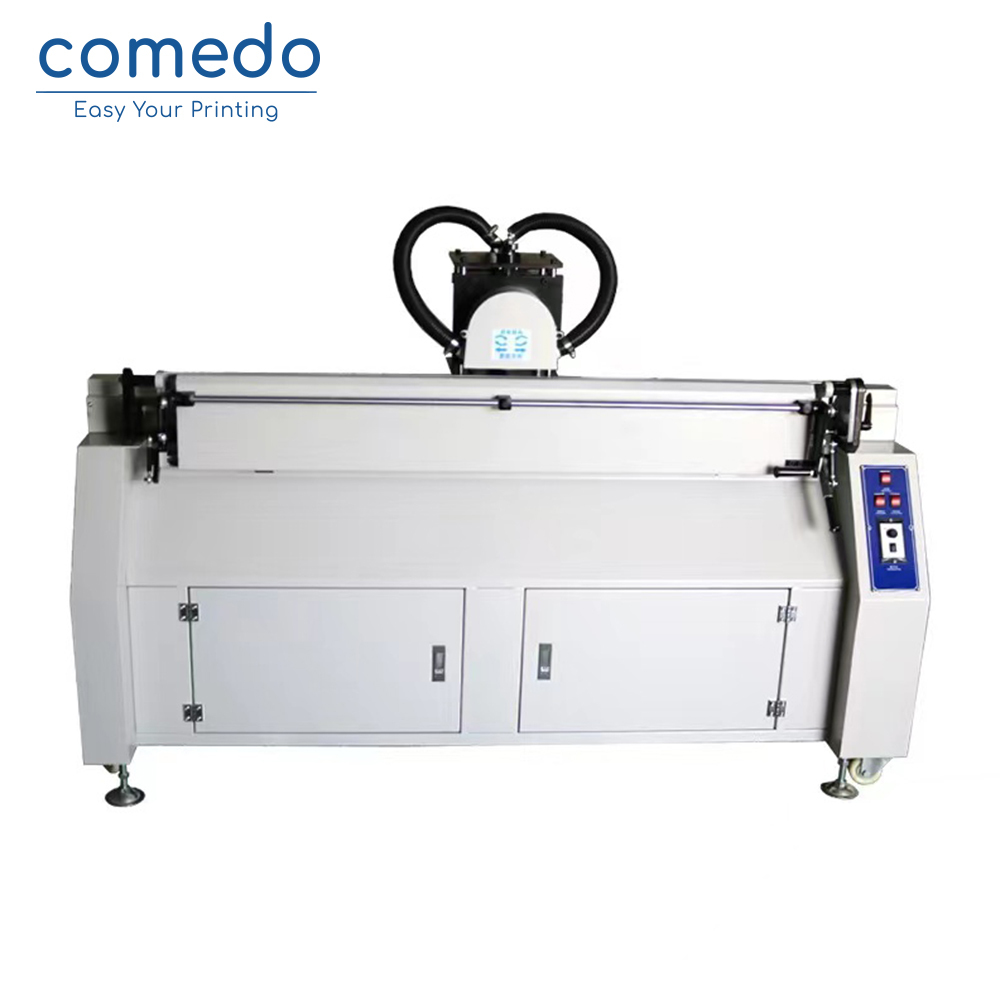

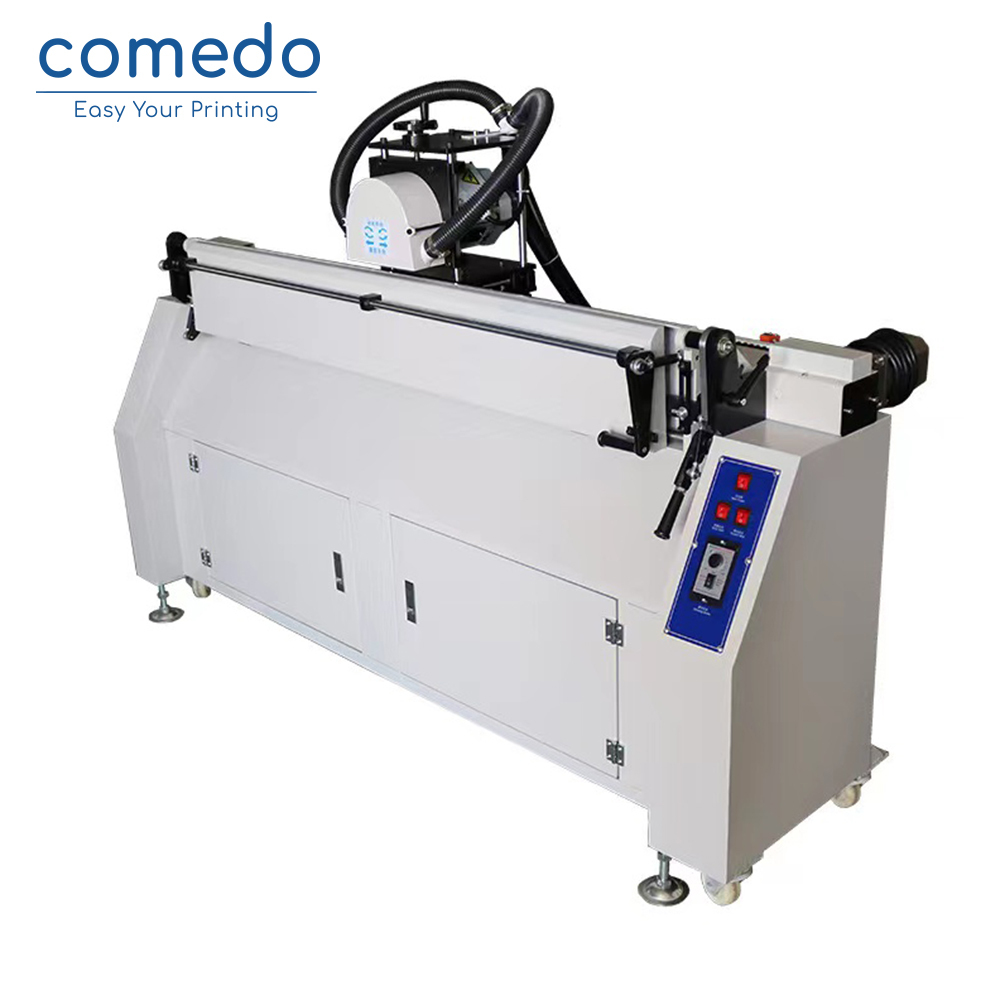

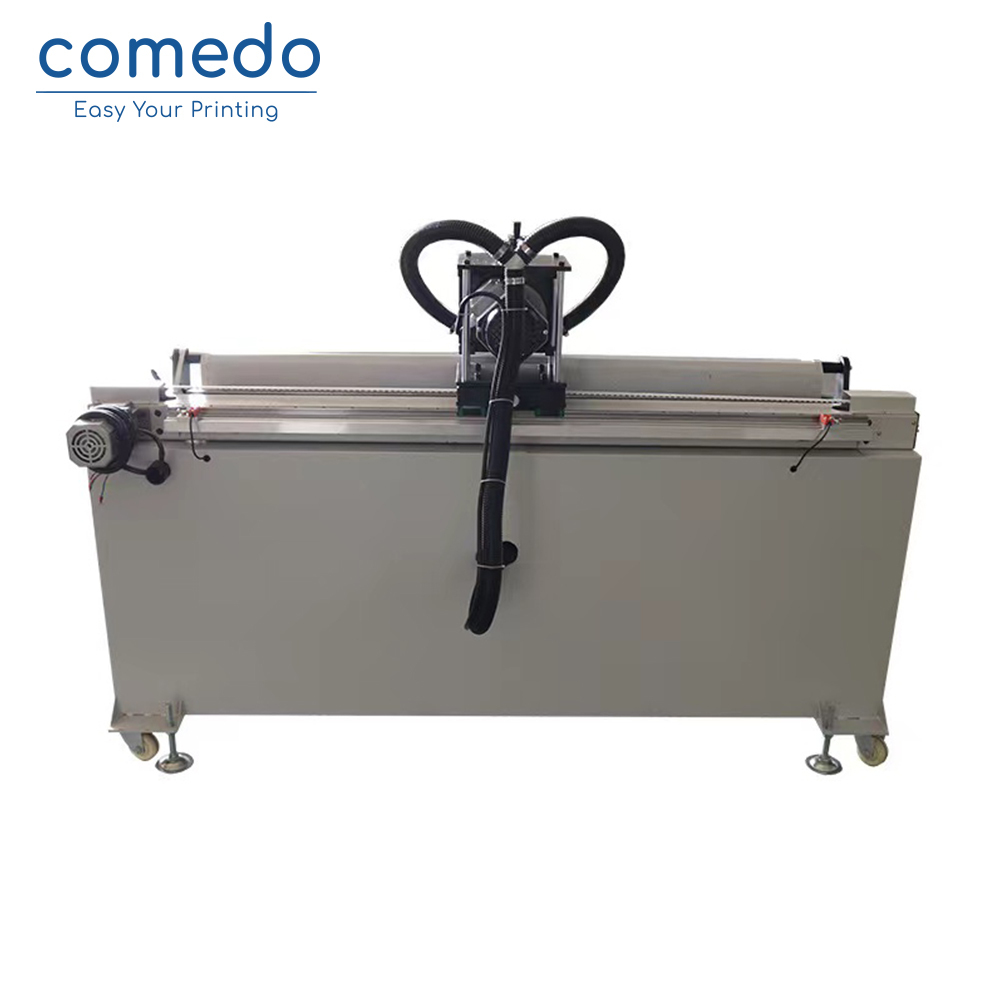

High precision automatic squeegee grinding machine for screen printing

Comedo high precision automatic squeegee grinding machine for screen printing sharping on the PU squeegee Su as 0° to 45 °
Applicable to Rubber PU squeegee size 800mm, 1000mm, etc.
Custom size is available
1) automatic grinding
2) angle adjustable for squeegee
3) Vacuum cleaner for automatic cleaning grinding dust
4) long-lasting motor, with 2 years warranty
5) easy operation

Get A Quote

Add to Quote List Browse the list

Desciption

Model	KMD1000A
Grinding length	1000mm
Grinding motor	330kW(Taiwan)
Motor Power	120W
Grind angle	0 -45 degree
Vacuum power	1320kW
Adjustment L/R	0-8cm
Adjustment Upper/lower	0-10cm
Grinding method	Automatic
Power input	220V / 50Hz
Machine dimension	1550x620x1000mm

Automatic Squeegee Sharpener
kmd 1000/1500/2500 Automatic Squeegee Sharpener is used to grind various screen-printing squeegees.
It can be used in either of two modes: automatic or manual handling and automatic handling.

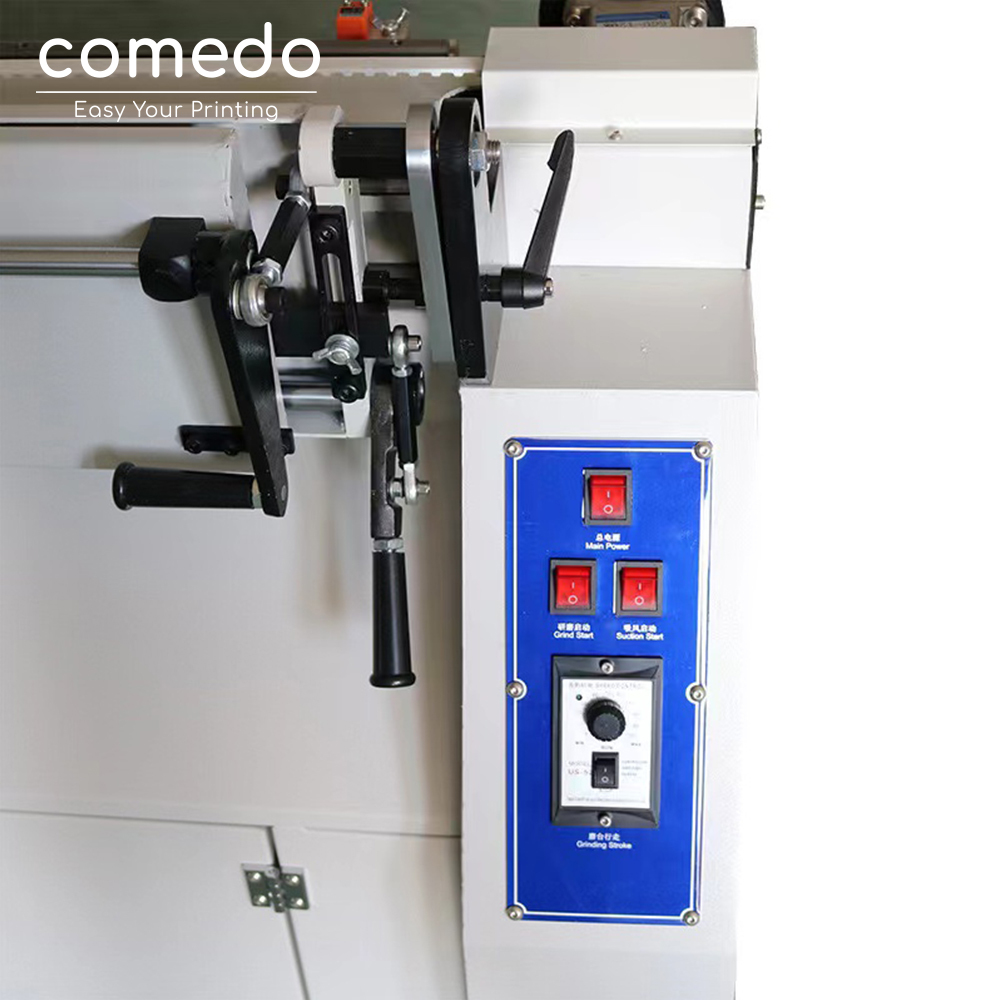

The machine has eccentric adjustment clamping device.
The clamping edge is manufactured to be smooth to correct the ductor body and clamp tightly.

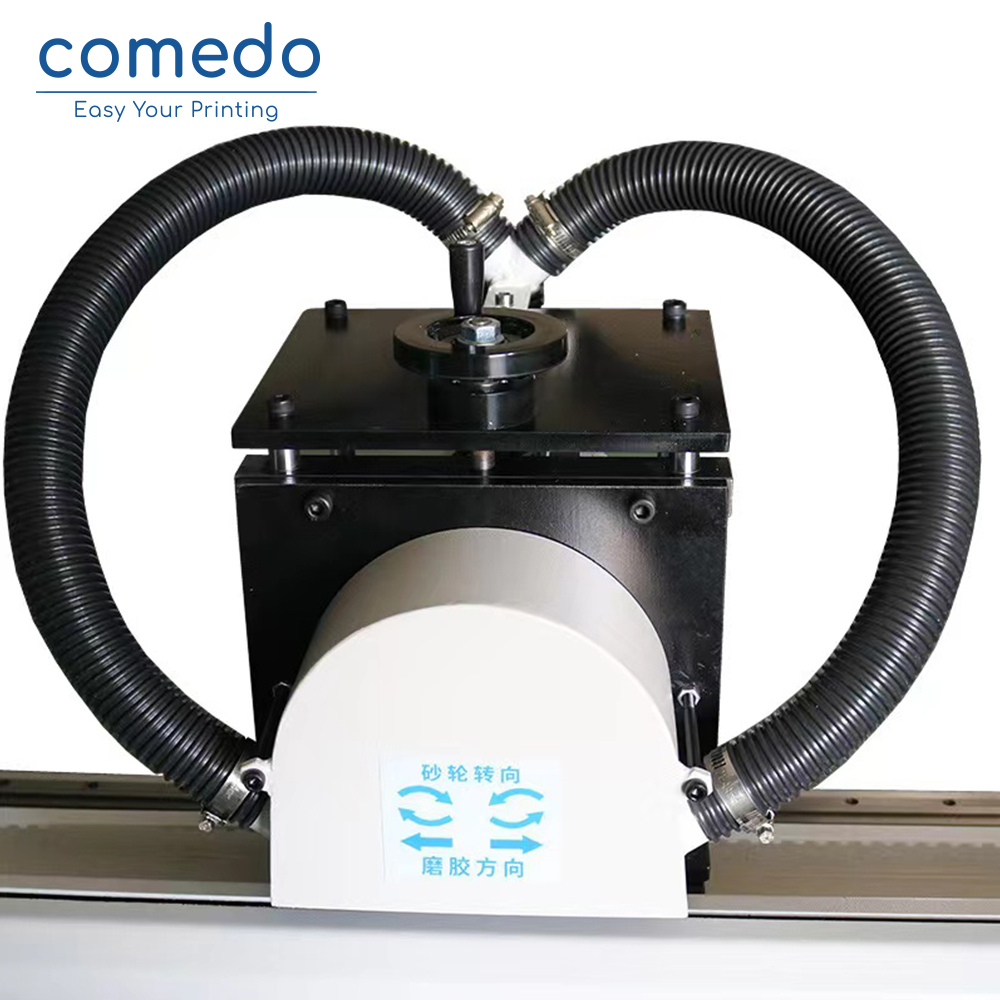

The dust collector prevents the grinding scraps from splashing, which also keeps the working area clean.
The grinding wheel is made of emery, which improves the grinding precision and prolongs working life.
The squeegee edge can be ground within 0-45°.
The machine is controlled by PLC and the moving speed is adjusted steplessly.
