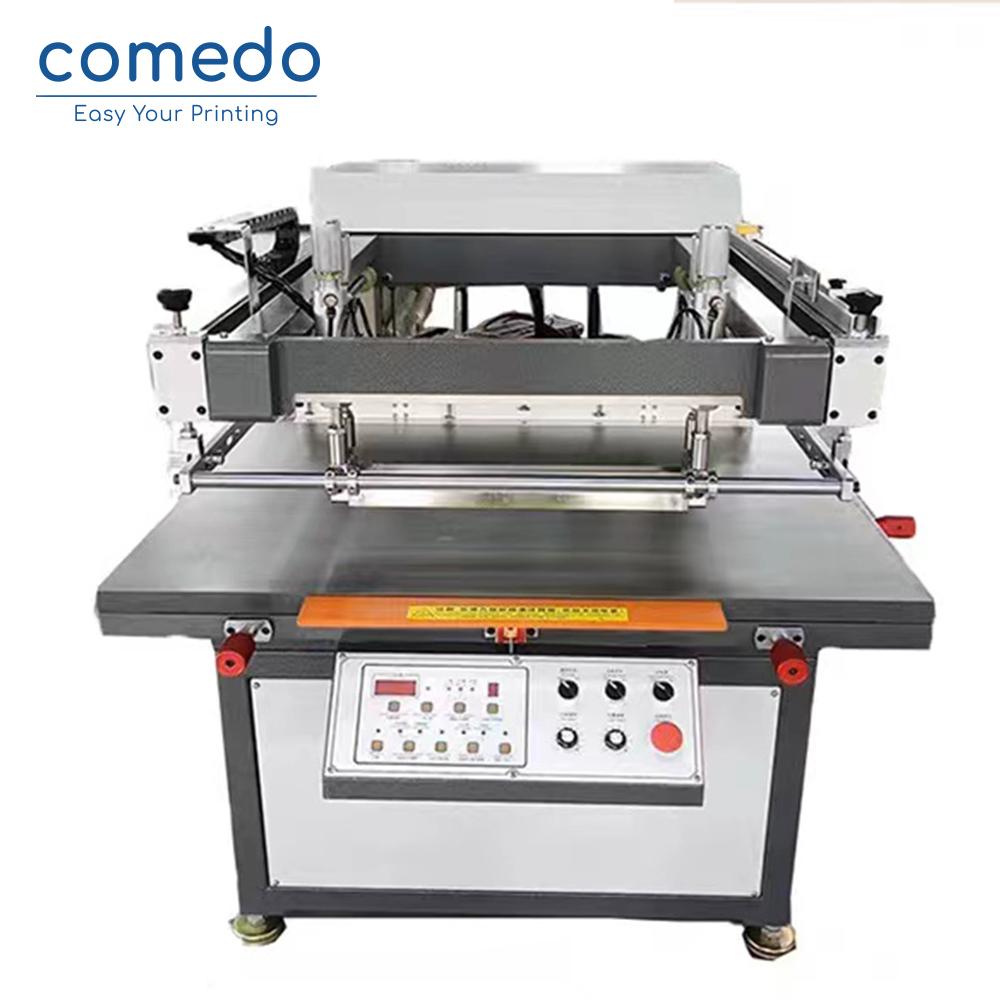

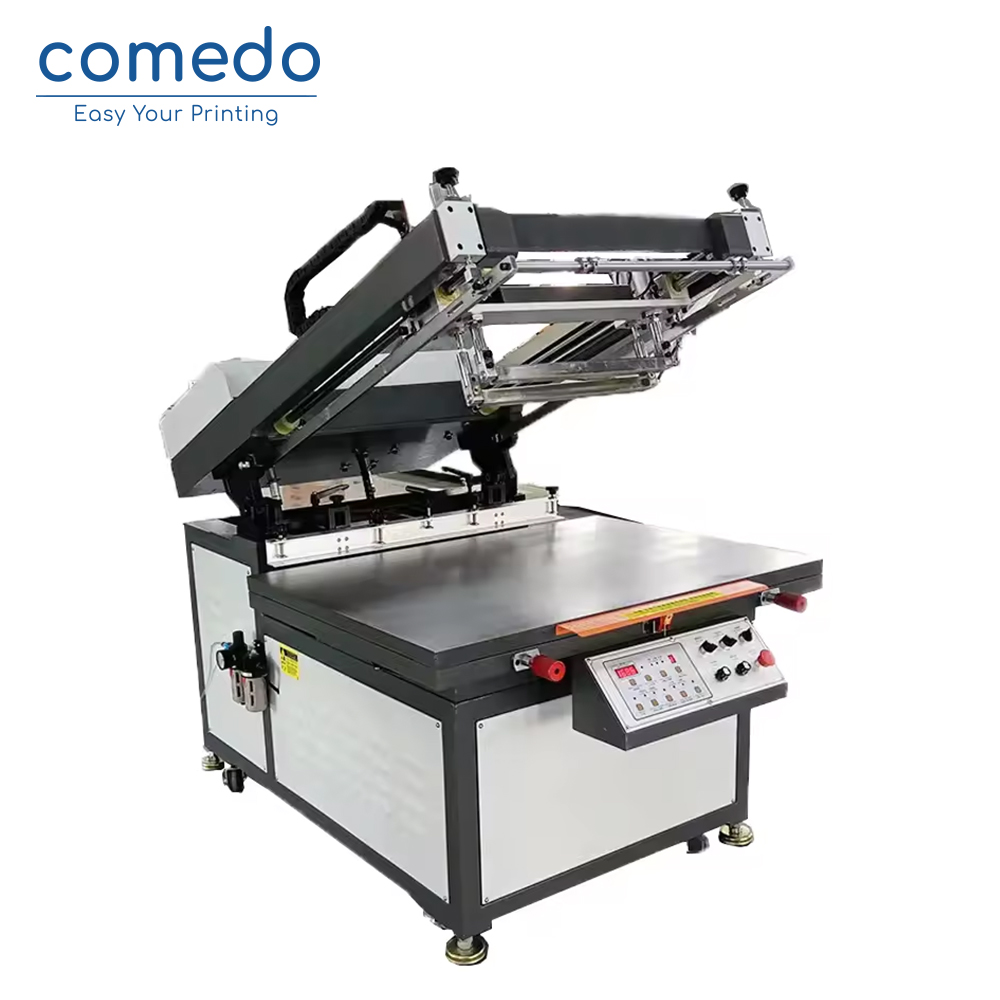

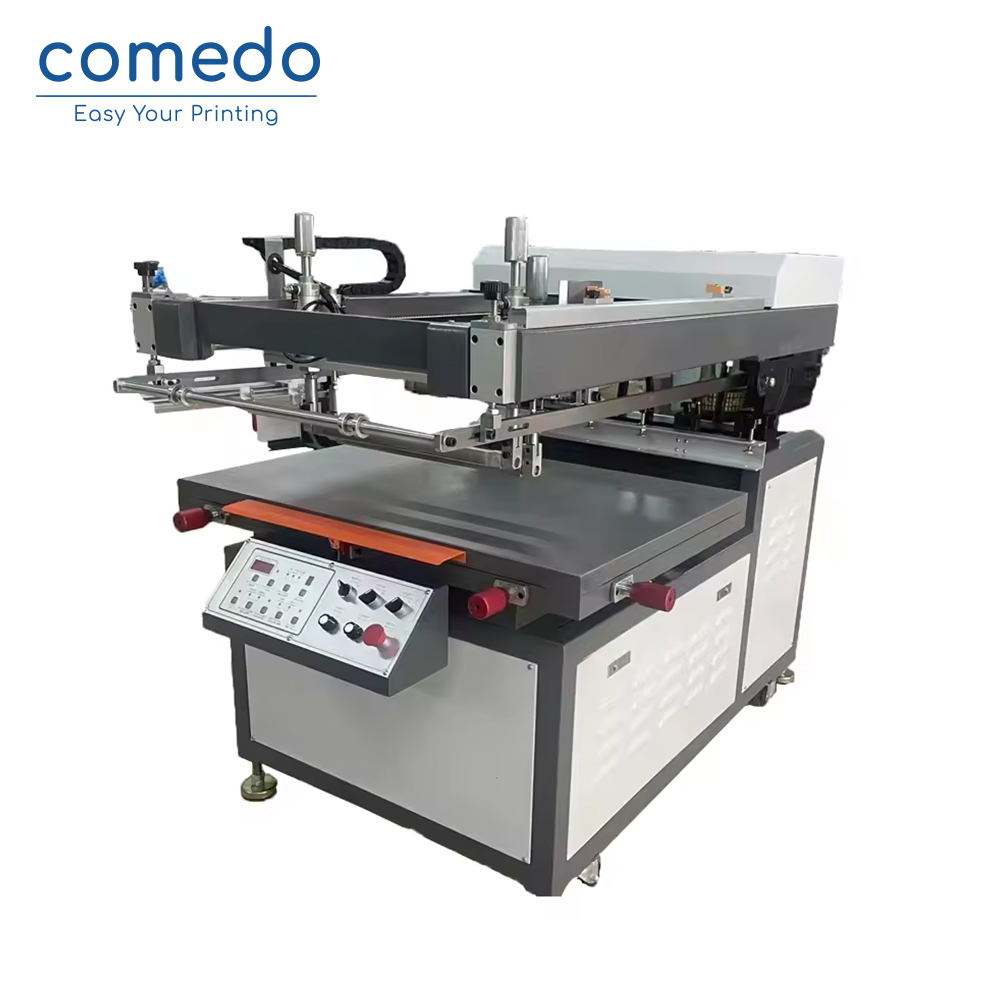

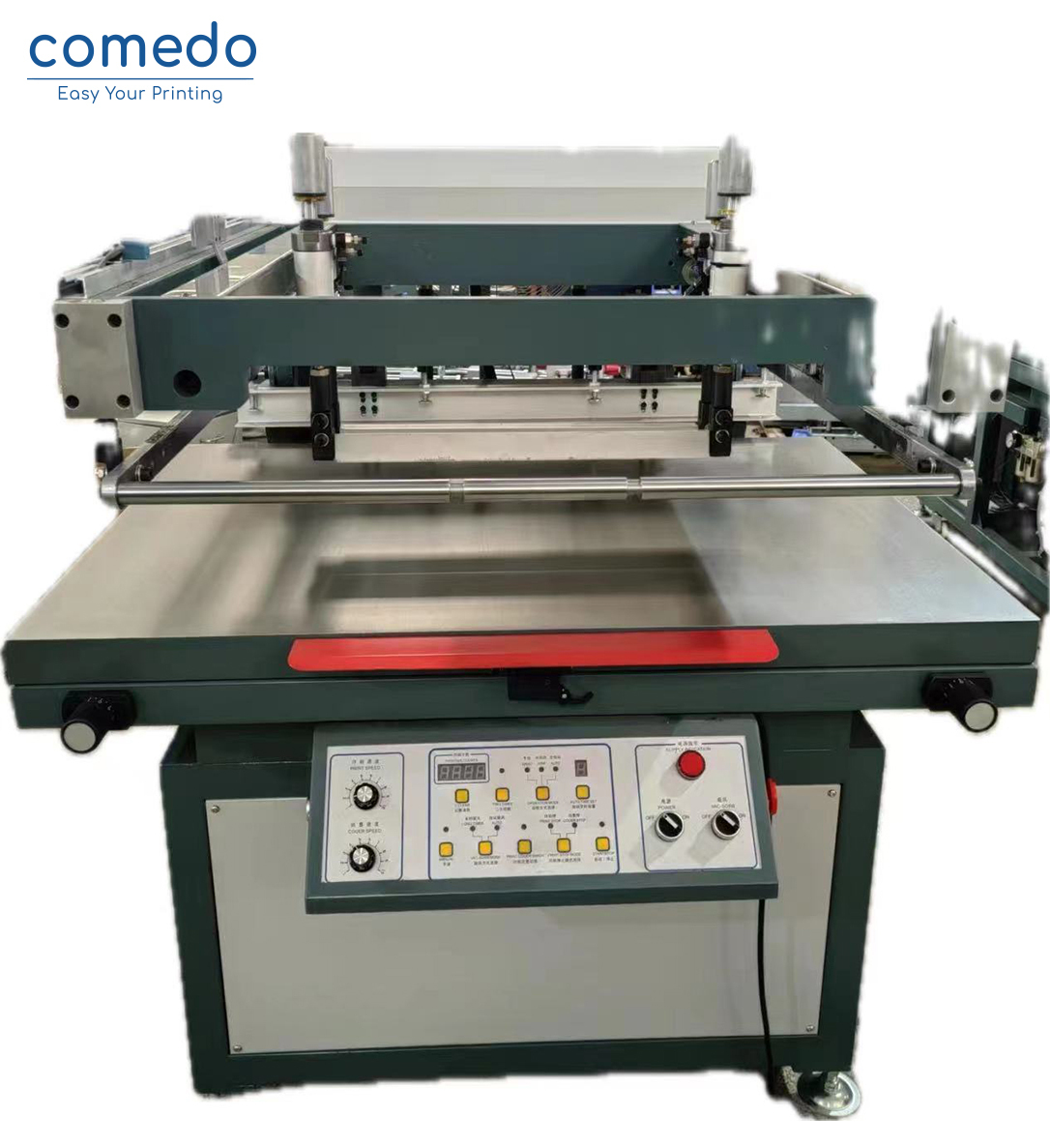

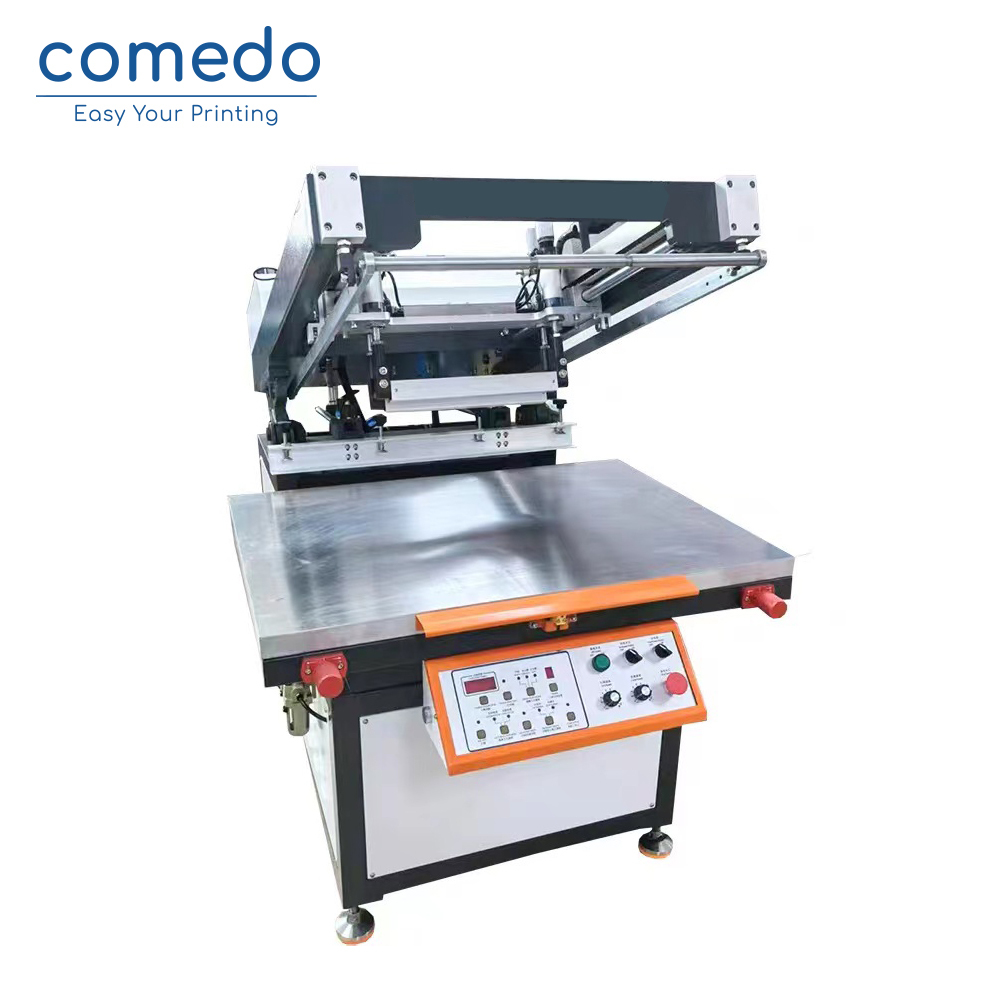

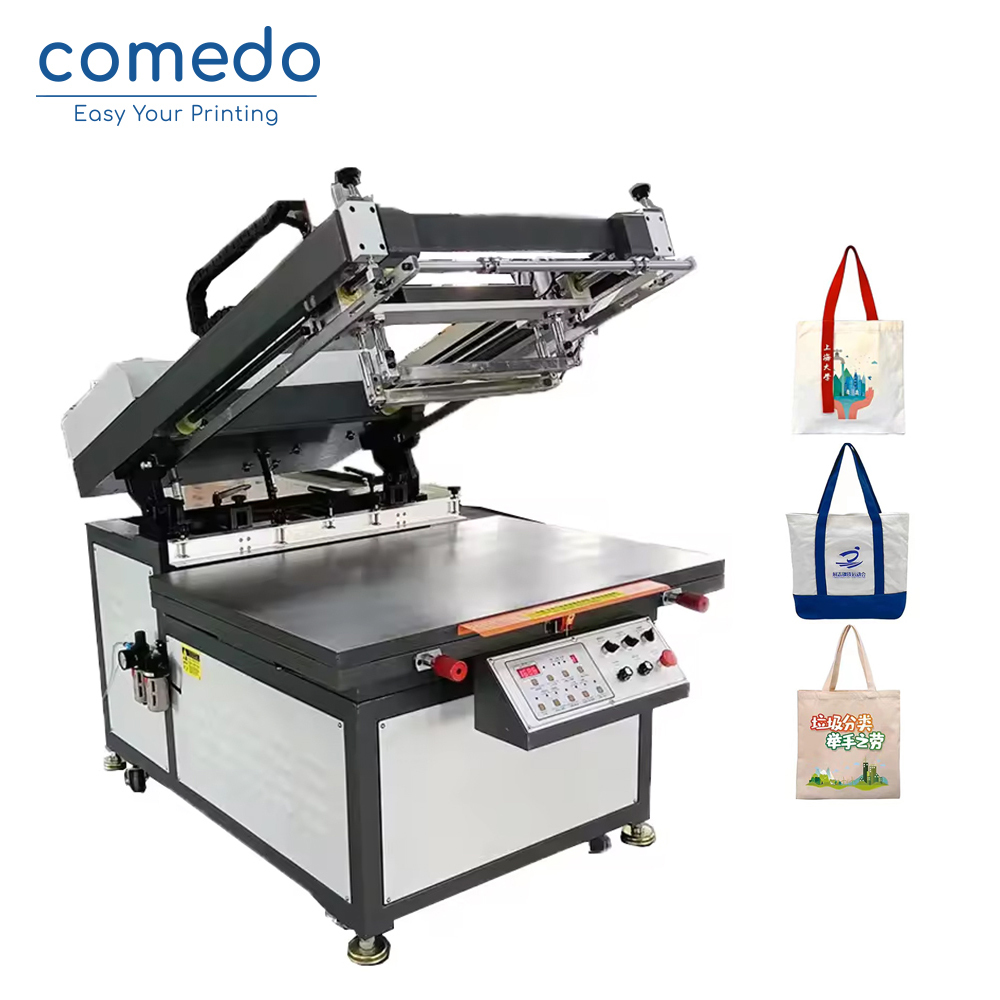

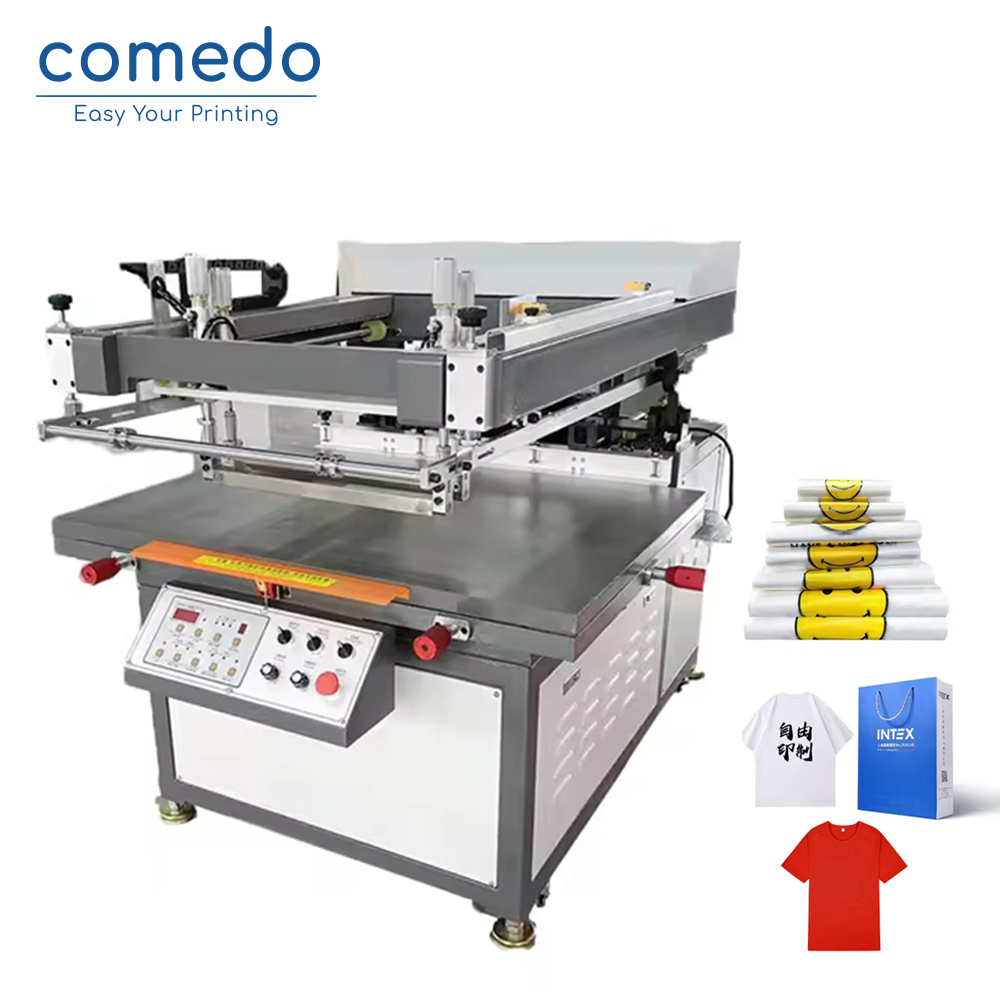

KMD6090 oblique arm flat screen printing machine is widely used in the packaging industry, such as cigarettes box, wine box, gift box, Also it is good to printing for the trademark, nameplate, ceramic decal, non-woven bag and so on.
Features and Performance:
1).Oblique arm structure. Independent drive of printing arm.
2).Vacuum stainless steel printing table and powerful vacuum pump.
3).Micro registration handle in horizontal and vertical direction make more precision and convenient color register.
4).Variable frequency drive system drives the printing head, respectively digital control of printing and ink reclaiming speed.
|
Machine configuration： |
 |
Characteristics:
◆ Printing transmission is driven by the electric motor, synchronous belt drive.
◆ Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.
◆ Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
◆ Vacuum adsorption print.
◆ The working table has a vernier regulation system(can move up and down, left and right ,forward and backward)that makes registration more correctly and simply.
◆ With security devices to make the head printing stop on the upper part position that is more reliable and safer.
◆ The electronic control unit(ECU)is central control by the microcomputer, the operation of complete applicance is simpler and more flexible, easy to repair.
◆ The front clip can be adjusted through forward and back.
|
model
|
KMD-70100
|
|
workbench size
|
720*1000mm
|
|
max frame size
|
900*1200mm
|
|
min frame size
|
450*550mm
|
|
Frame Lift Height（框架提升高度）
|
30mm
|
|
Operation Air Pressure
|
0.3-0.5Mpa
|
|
Air-Consumption
|
13(0.6Mpa)(L/pcs)
|
|
Source Power
|
2.3kw
|
|
Rated Power
|
220/50(V/Hz)
|
|
Max Table Height（
|
820mm
|
|
print speed
|
500-1200(pcs/h)
|
|
machine size
|
L*W*H=1500*1200*1250mm
|
|
Weight
|
410 kg
|
