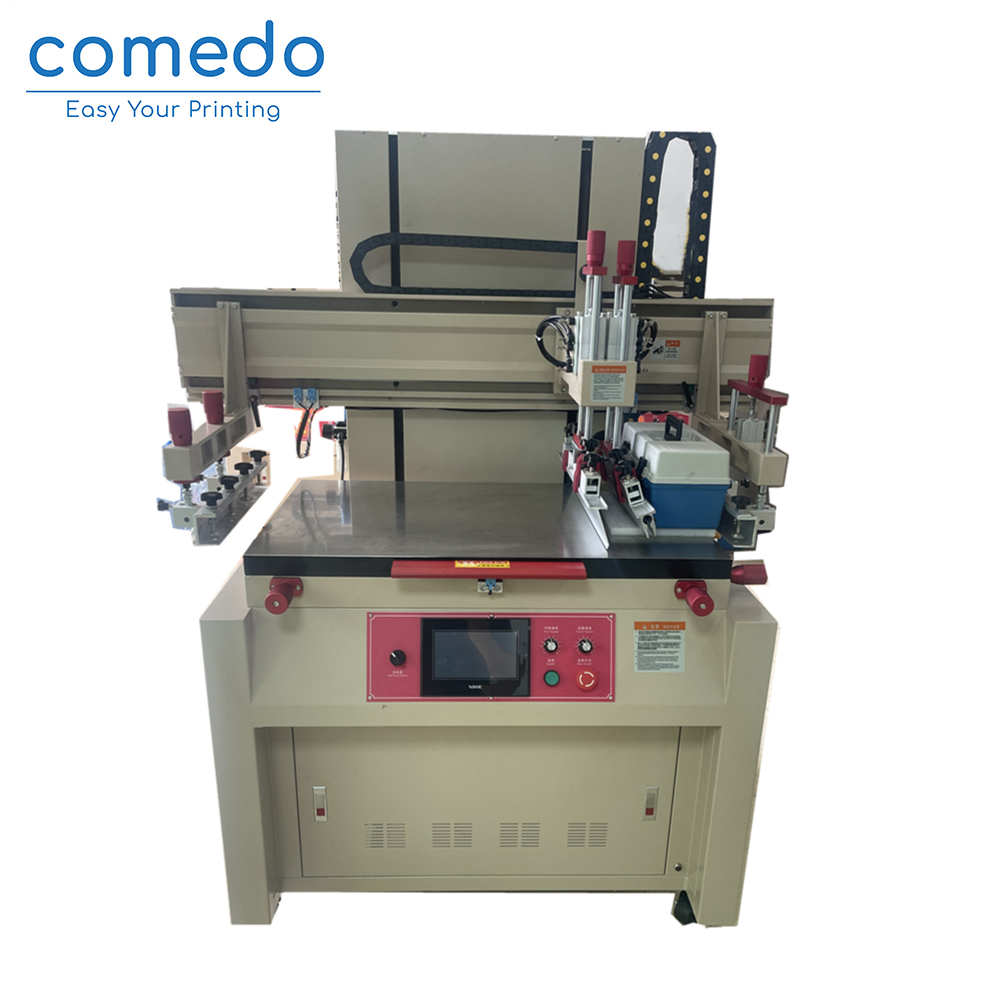

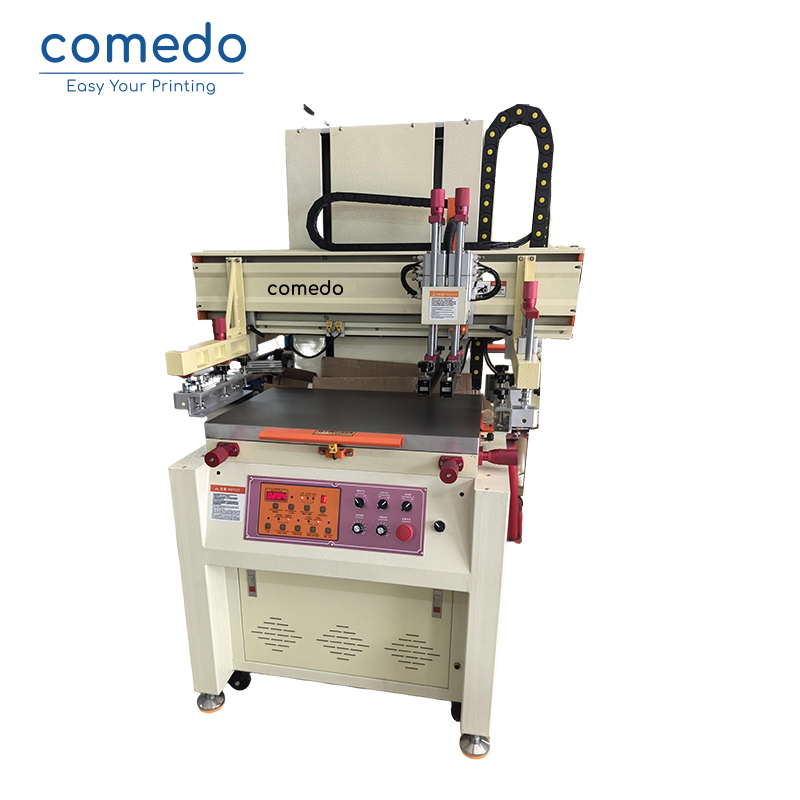

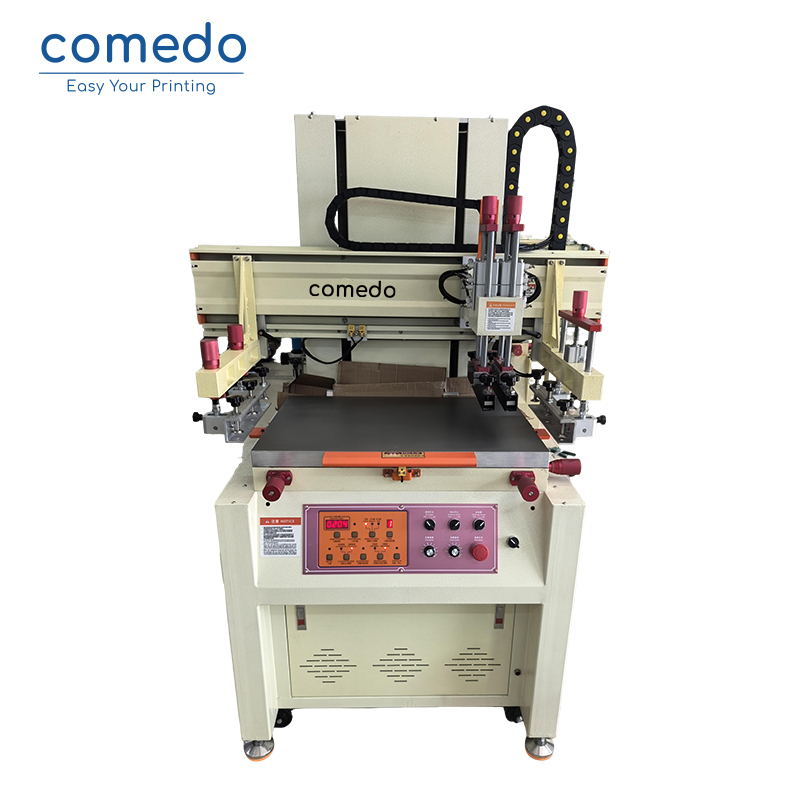

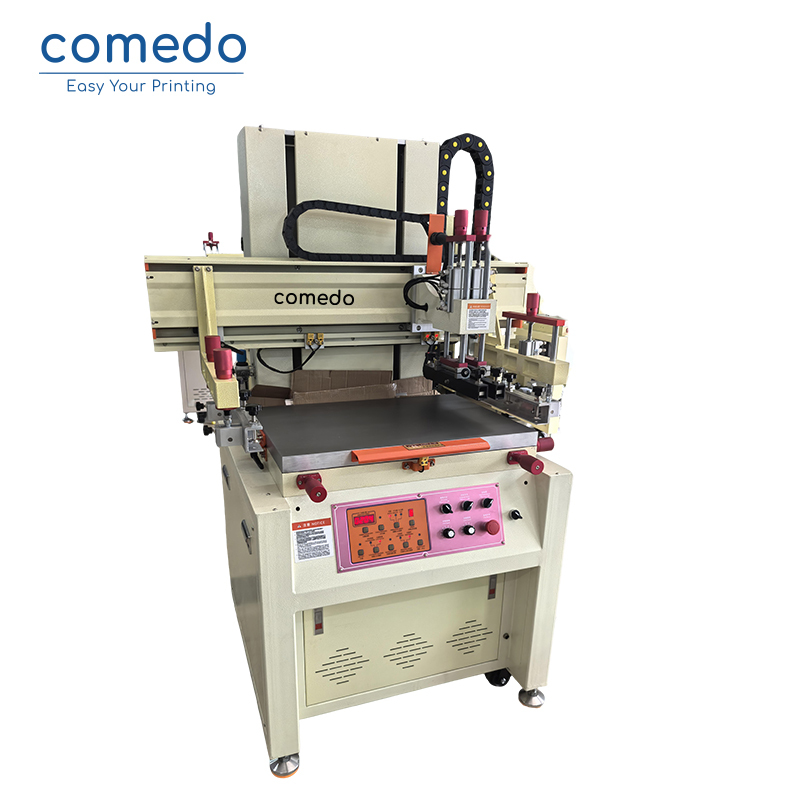

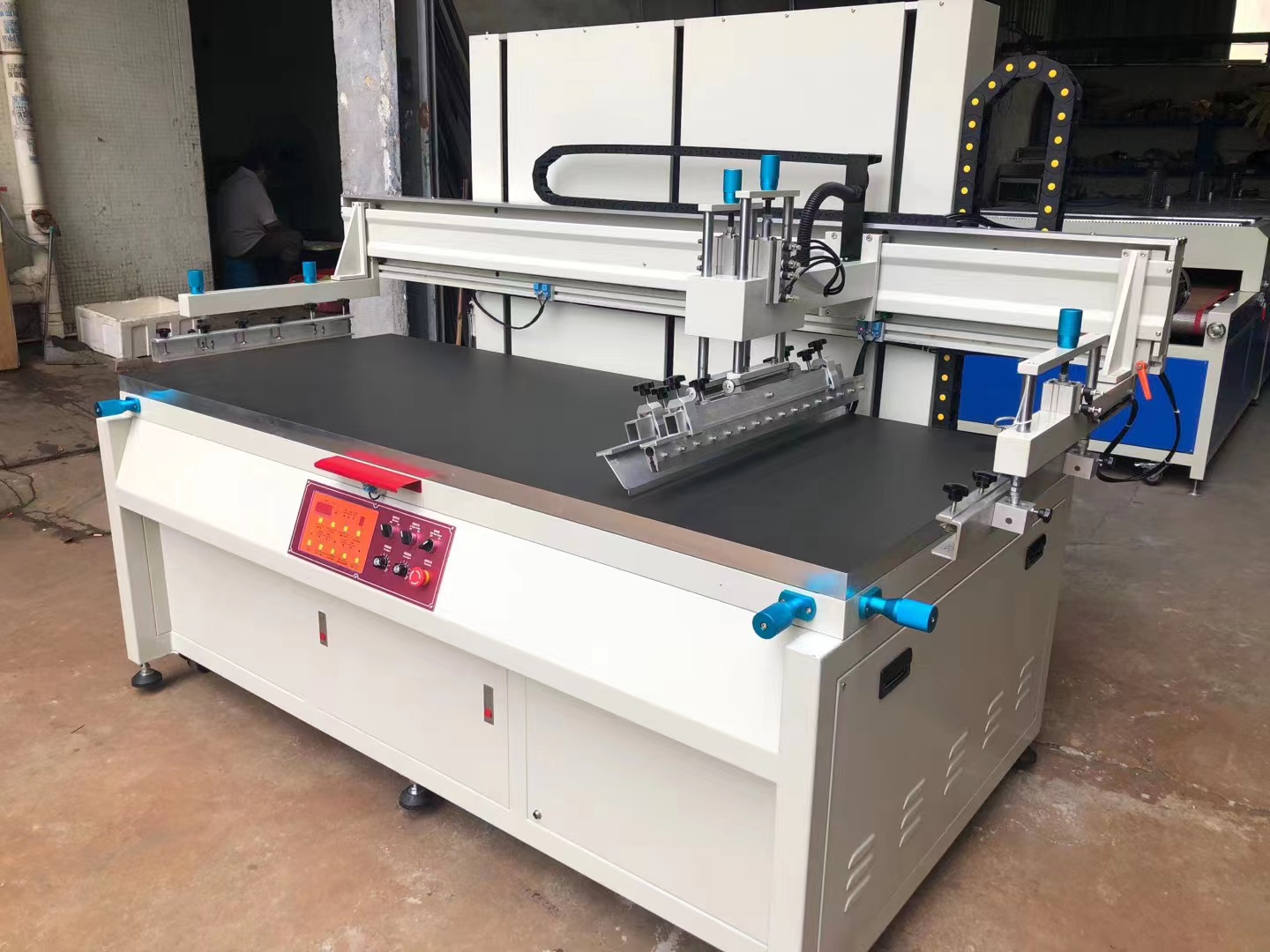

Model: KMD-5070
Max Printing area(mm): 500*700
Printing table size(mm): 600*800
Max frame(mm): 700*1100
Printing thickness(mm): 30
Over print accuracy(mm): 0.01
Printing pressure kg/cm2: 0.6-0.8

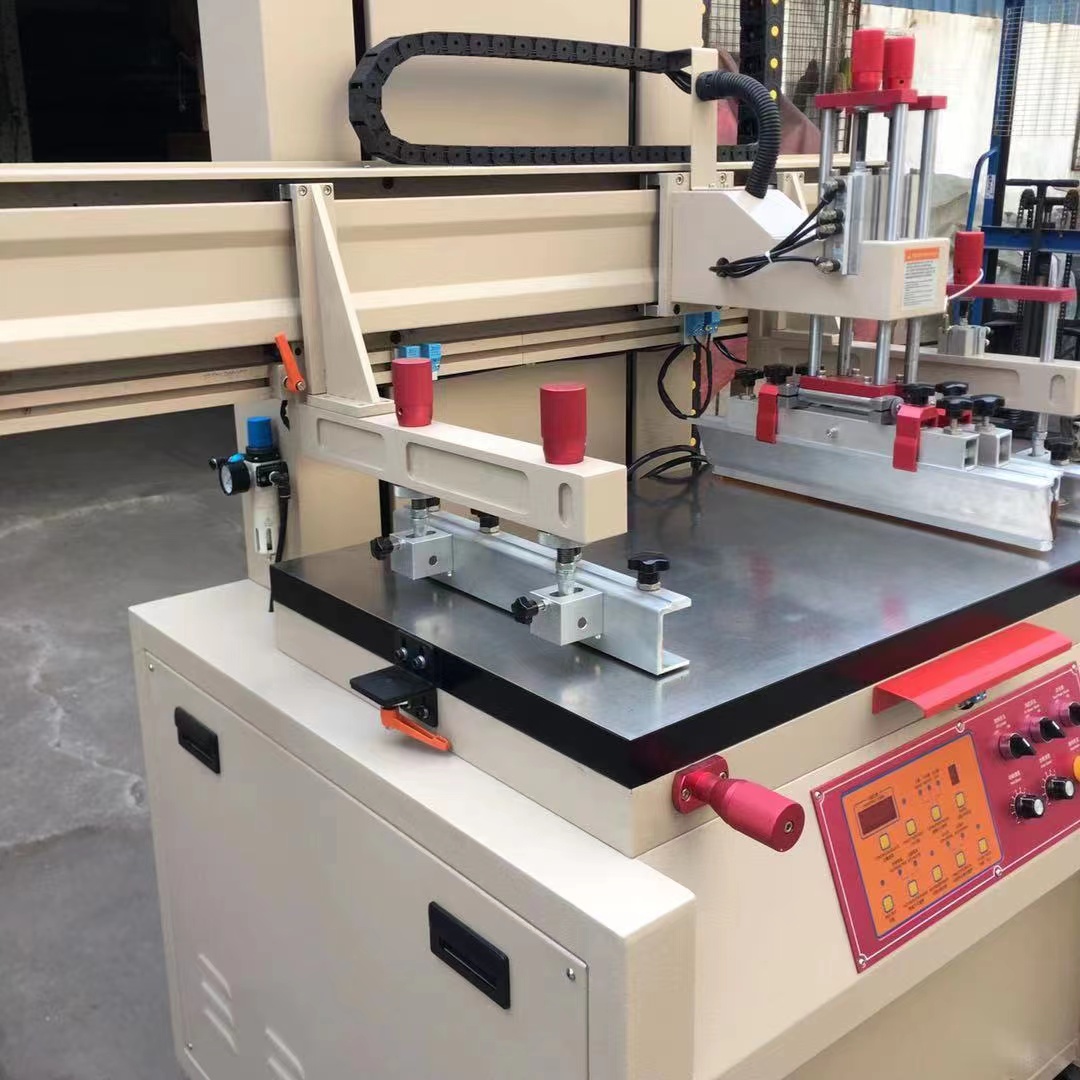

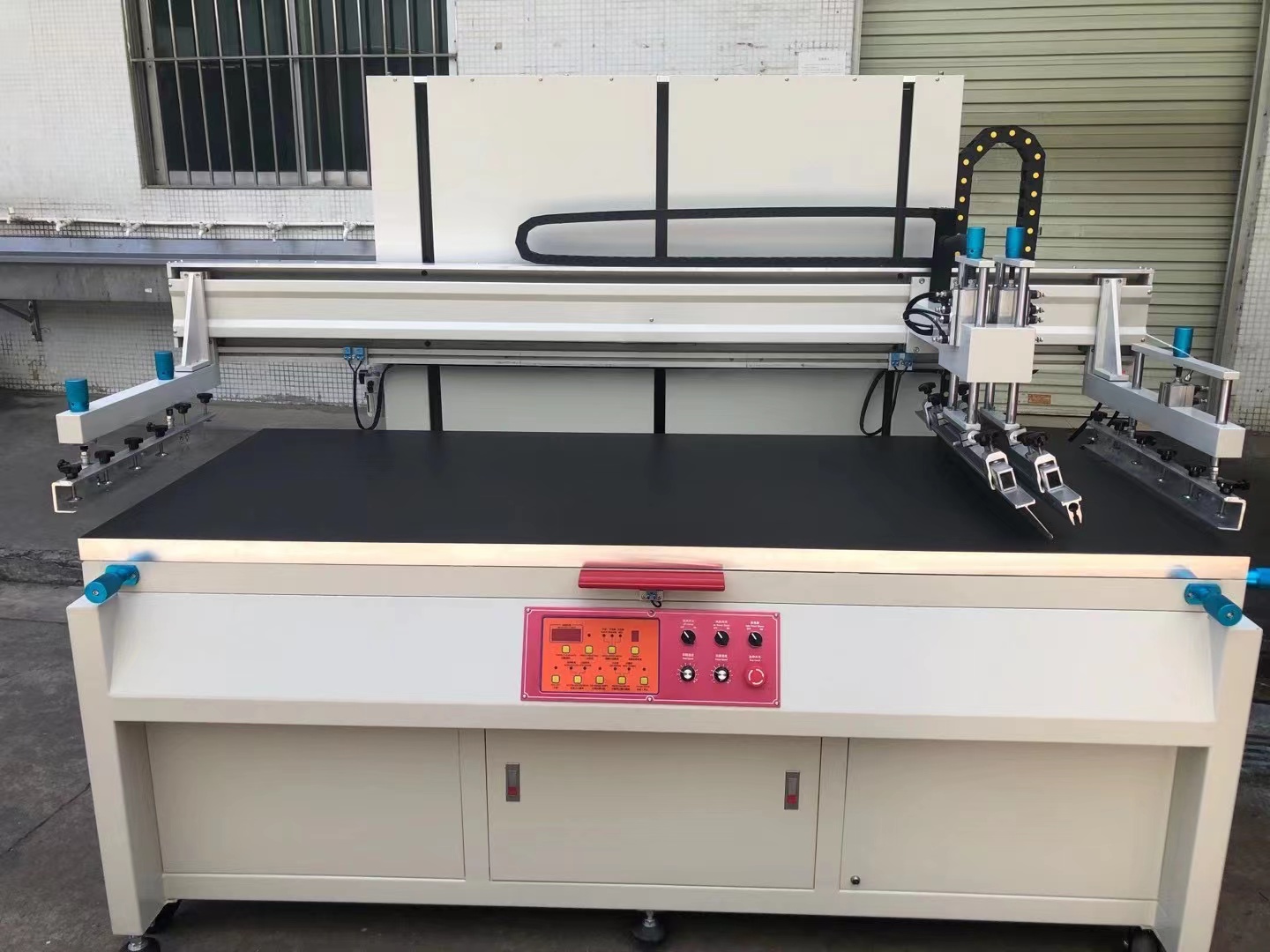

1. The semi auto silk screen printer platform is adjustable and moveable, which make it convenient to take the material.
ertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.
2. The semi auto silk screen printer adopts micro computer integrated systerm, printing and plate moving up &down are driven by independent Current Source.

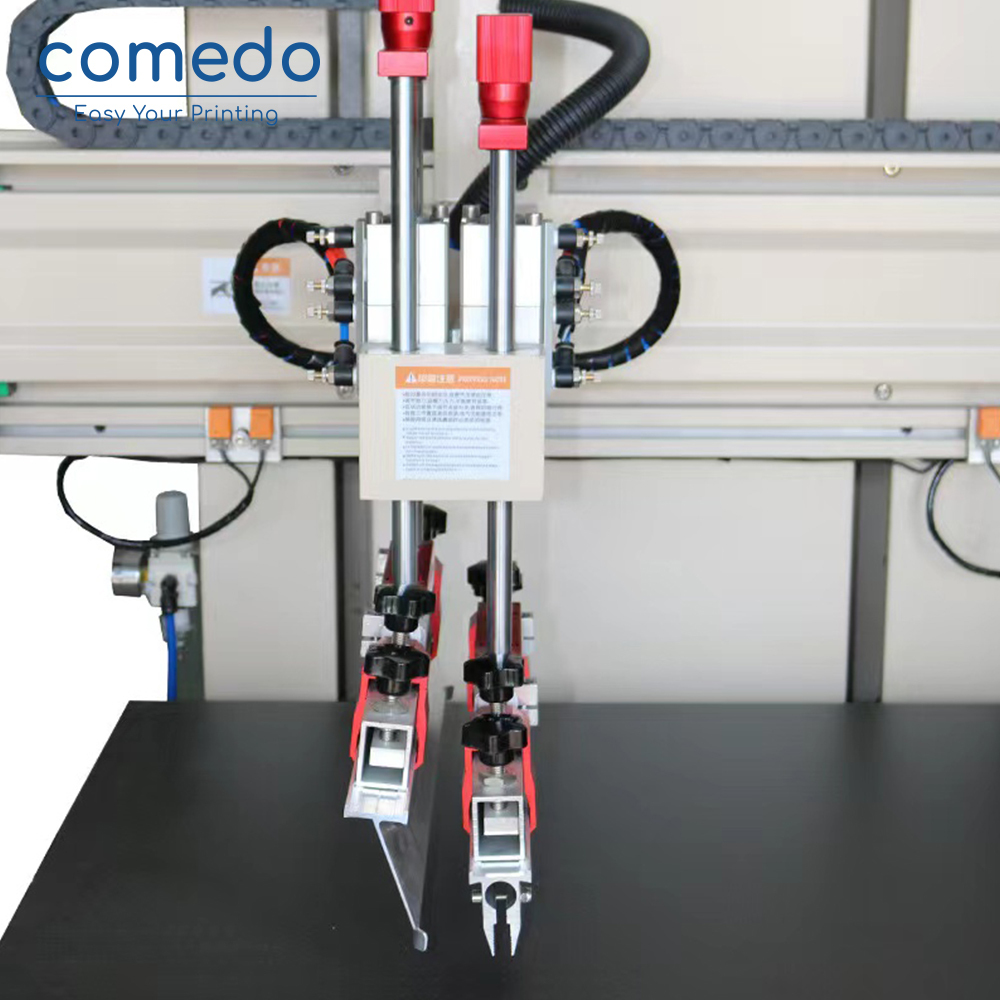

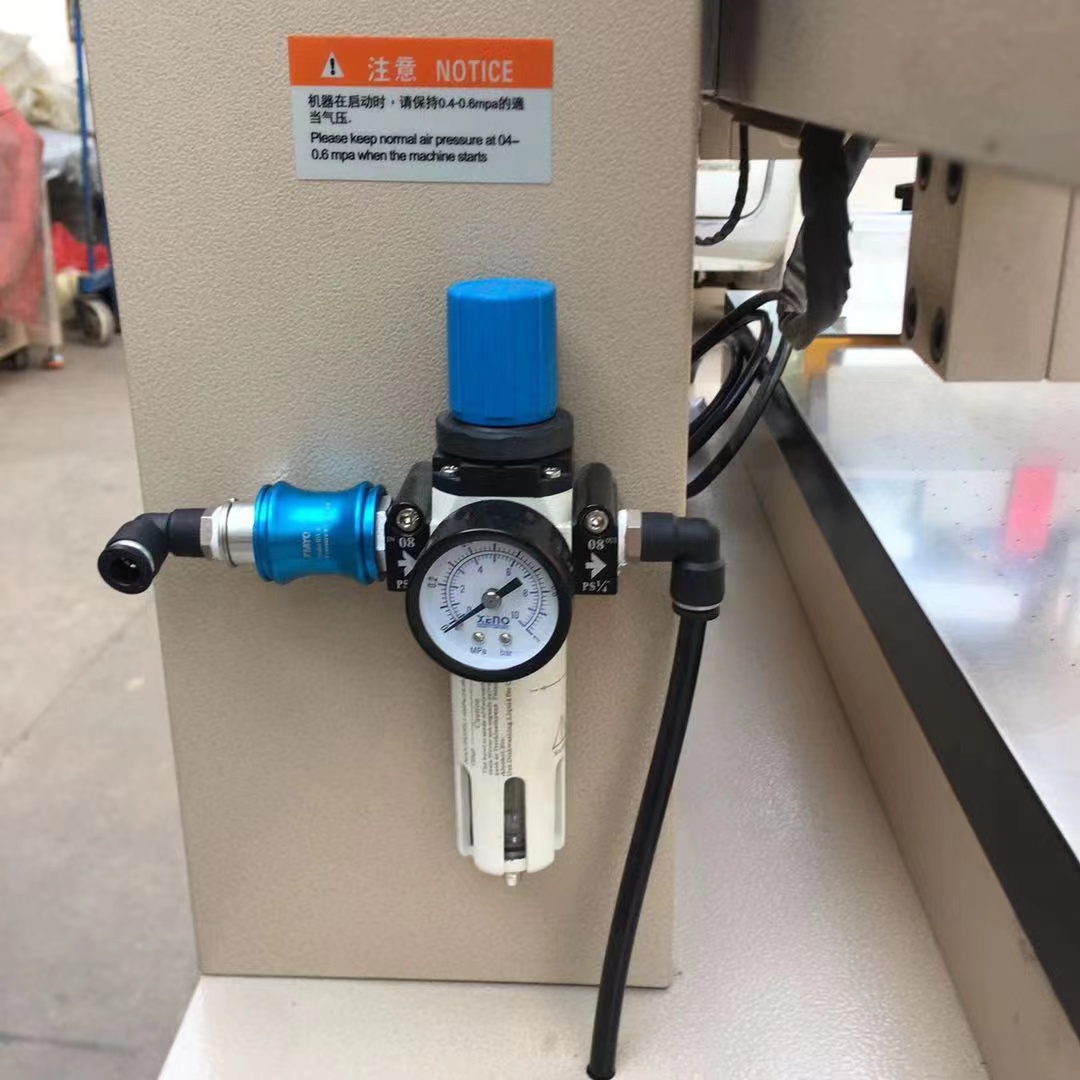

3. semi auto silk screen printer blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.
4. Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.
5. Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper ink reclaiming blade.

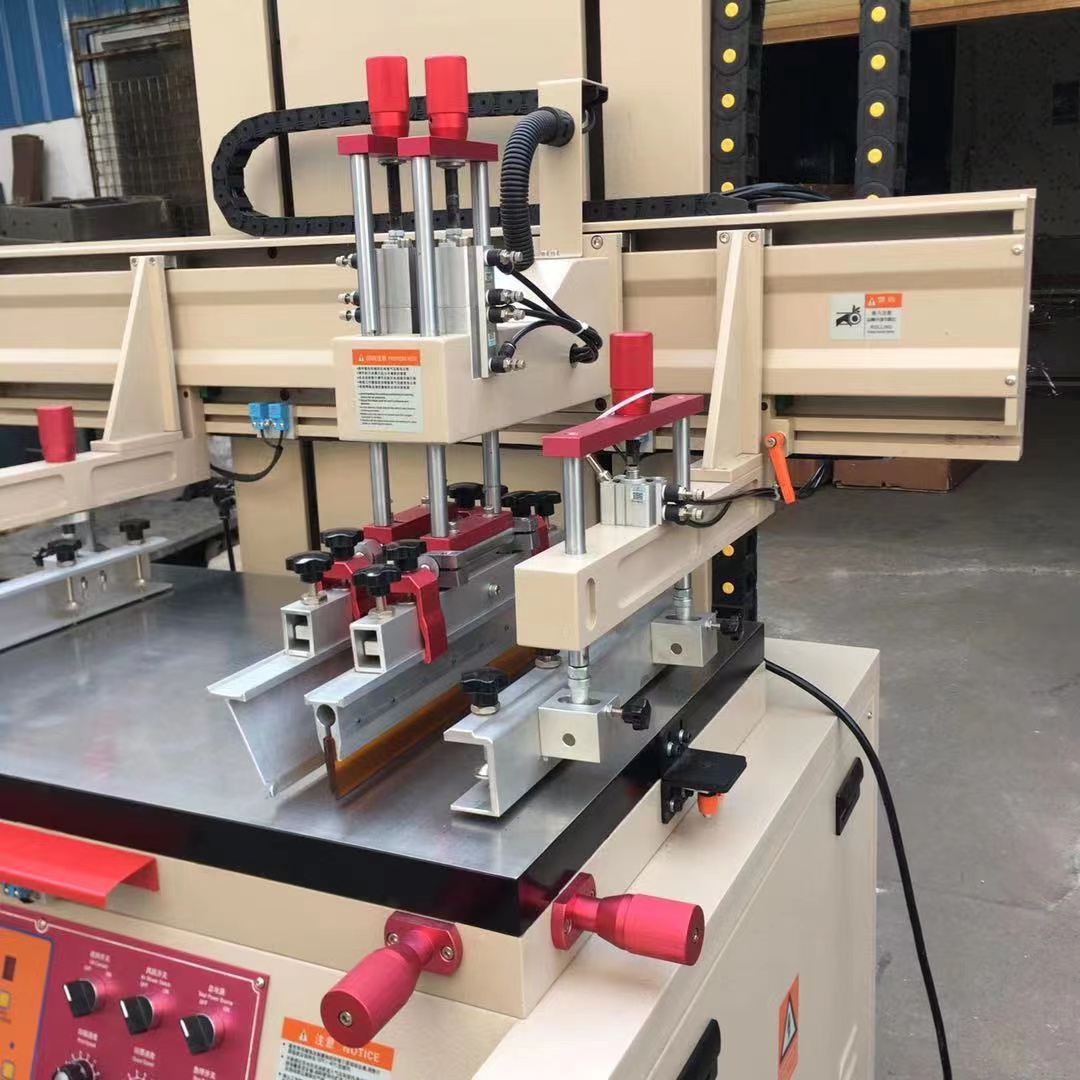

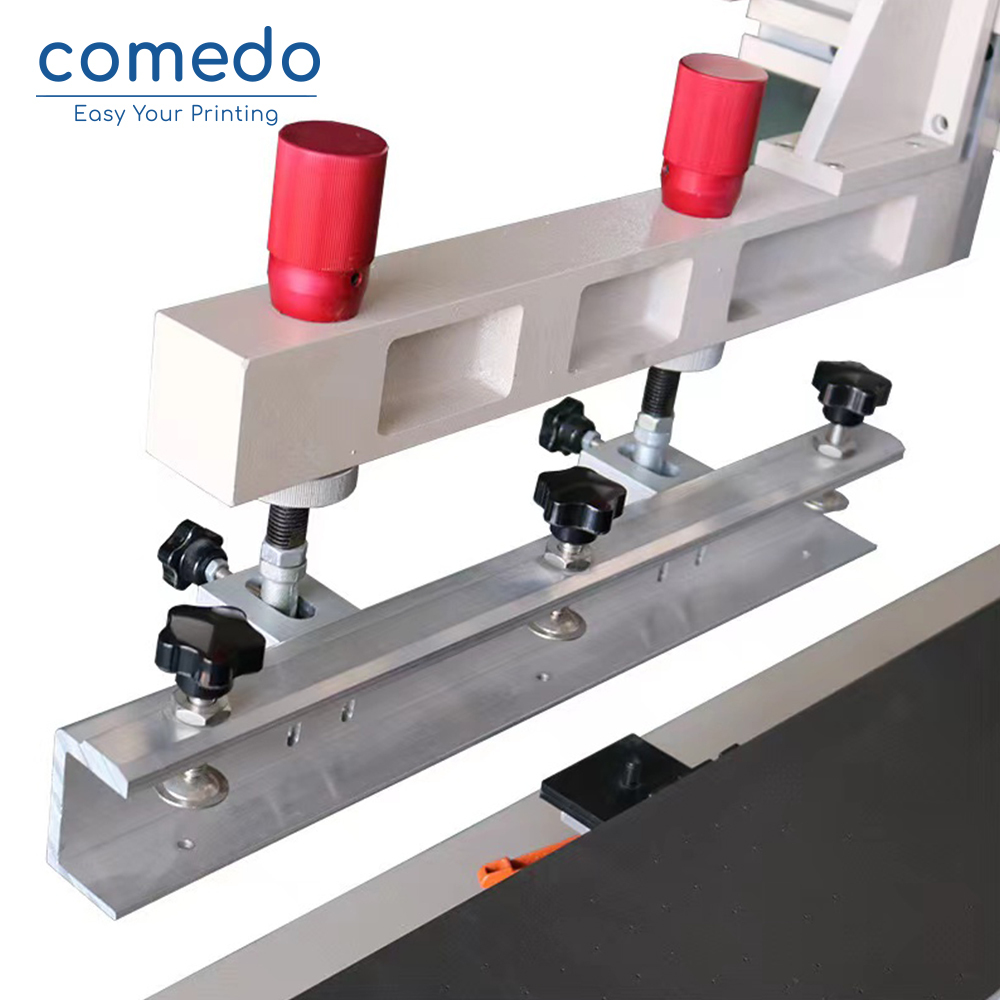

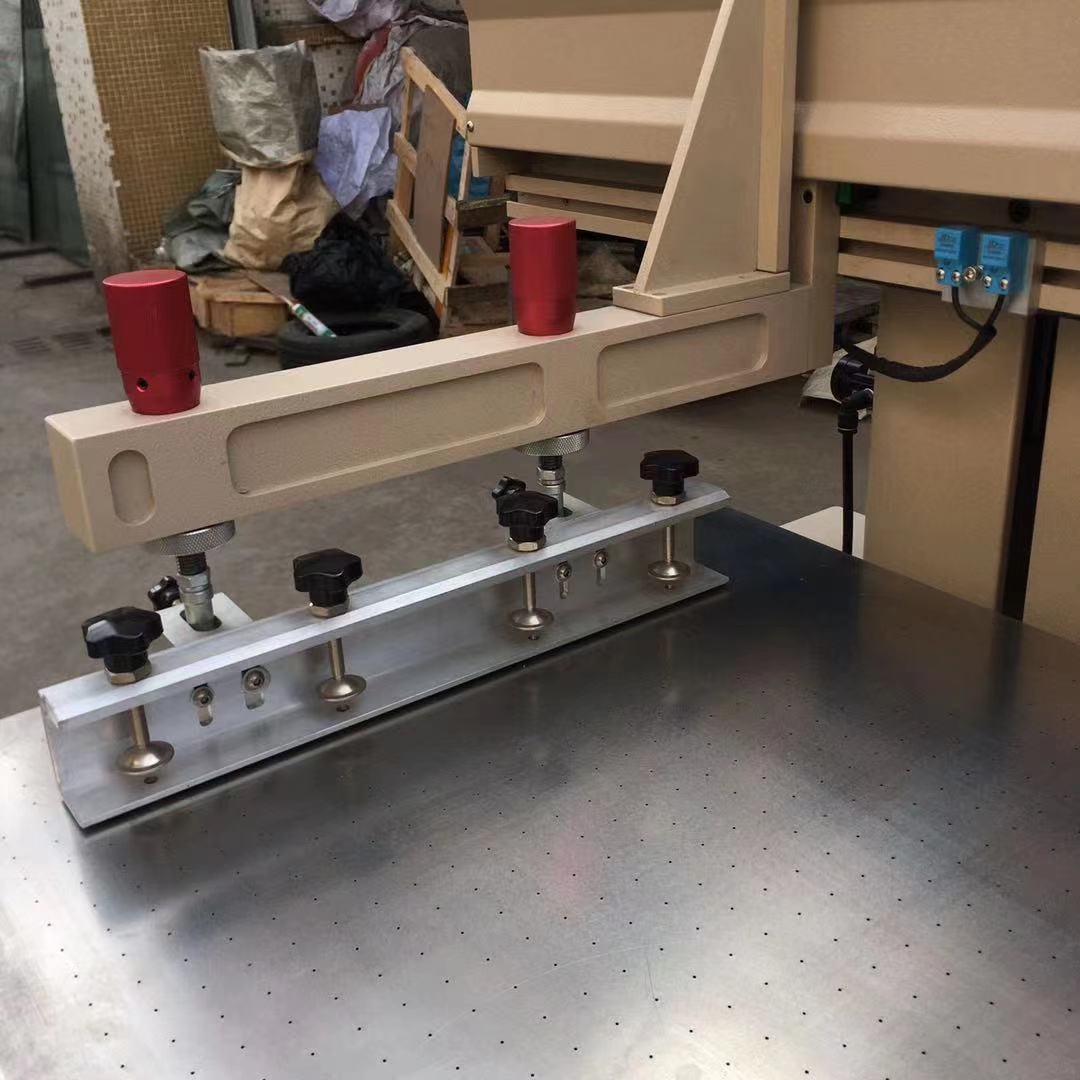

6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.
