Model |
KMD3350 |
|
Maximum frame size |
3300 X 5000mm |
|
Minimum frame size |
800 X 800mm |
|
Maximum coating size |
3000 X 4700mm |
|
Minimum coating size |
600 X 600mm |
|
Longest ink fountain length |
3000mm |
|
Shortest ink fountain length |
600mm |
|
Can be coated mesh frame thickness |
15-60mm |
|
Coating accuracy |
±0.002 mm |
|
Coating Times |
positive and negative coated 0 - 9999 times |
|
Coating time setting |
Four process time can be set free |
|
Coating pressure |
2 - 6kg/cm2, can be adjusted |
|
Coating speed |
5 - 150mm/sec |
|

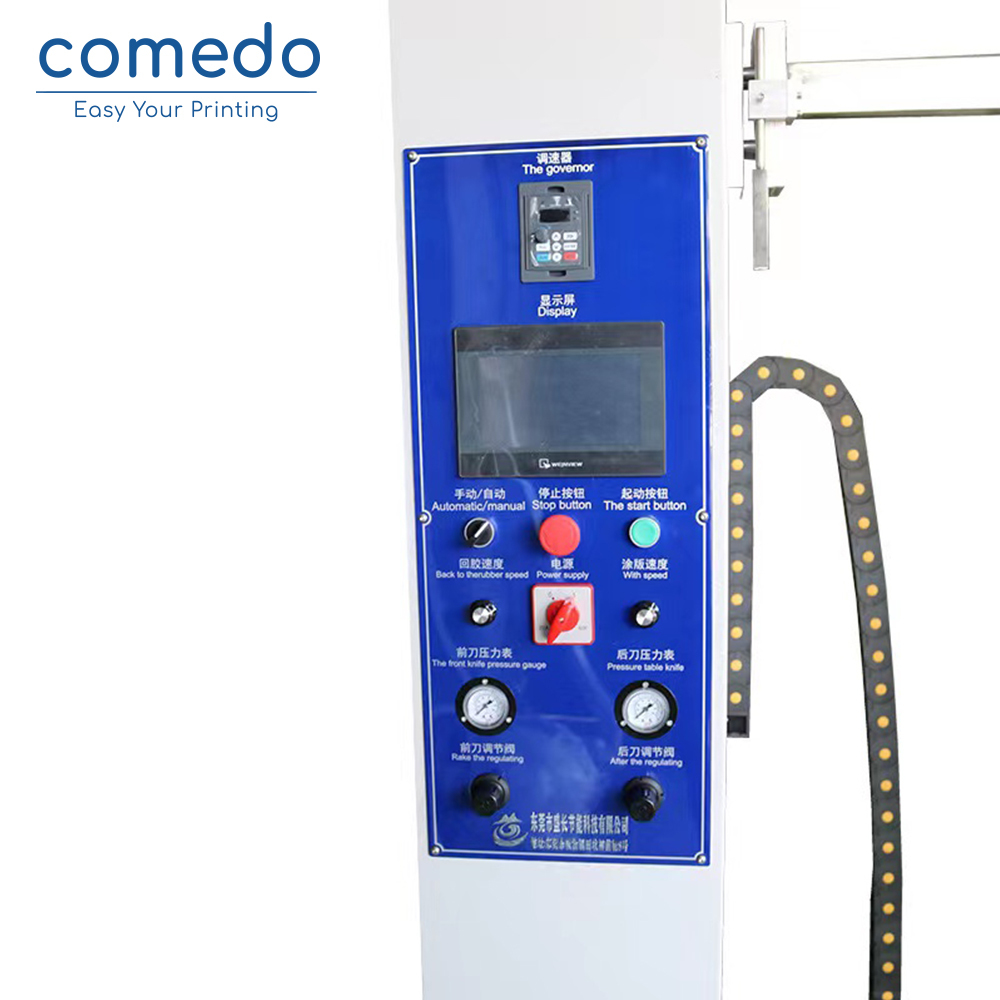

Operating system |
HMI + PLC |
|
Frame fixed |
A key to frame fixed way vacuum quickly locking |
|
Air pressure |
6kg/cm2 |
|
Weight |
1500kgs |
|
Power supply |
220V X 1ph X 2.2KW |
|
Machine specifications (WX D X H) |
4323mm x 1225mm x 5962 mm |
